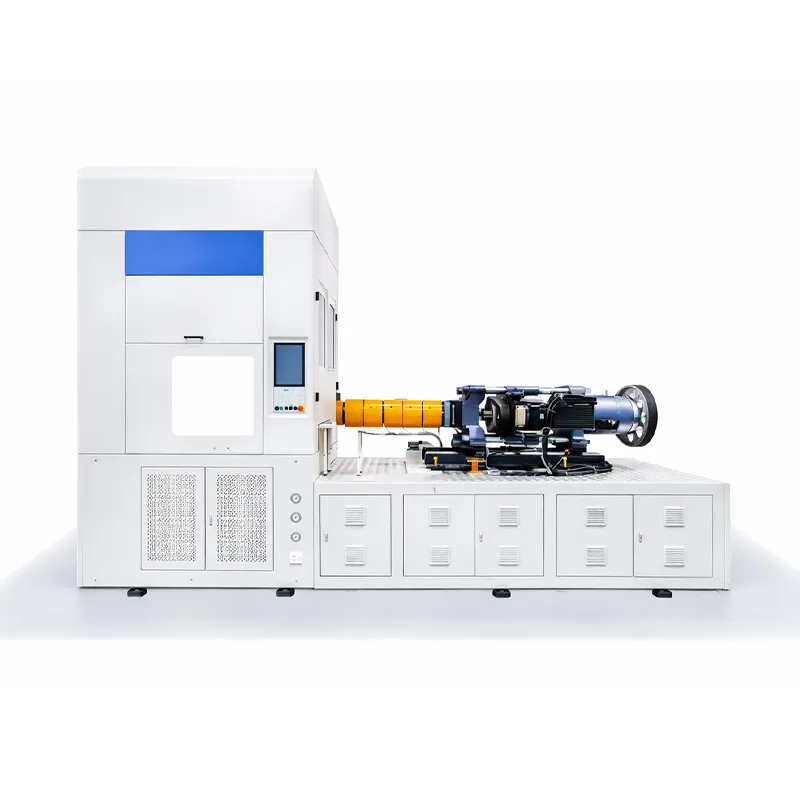

Injection Stretch Blow Molding HGY150-V4-EV: Premium 4-Station ISBM Machine

Maximize precision and efficiency with the HGY150-V4-EV, a fully servo-driven injection stretch blow moulding machine. Engineered for premium PET containers, this 4-station unit integrates injection, conditioning, stretching, and ejection in one seamless cycle. Featuring 150KN injection force and compatibility with ASB-12M molds, it delivers glass-like clarity and uniform wall distribution while reducing energy costs by 40%. Ideal for high-end cosmetic and pharmaceutical production in Korea.

Category: 4 Station ISBM Machine

Inquire Now

Description
Additional information

Engineering Overview: Redefining One-Step Precision

In my twenty years optimizing thermoplastic processing lines, I have witnessed the industry's shift toward high-precision, aesthetic-driven manufacturing. The HGY150-V4-EV stands at the forefront of this evolution. As a dedicated injection stretch blow moulding machine, it integrates the entire bottle-making process—injection, temperature conditioning, stretching/blowing, and ejection—into one seamless, energy-efficient cycle.

Unlike standard 3-station units, the HGY150-V4-EV features a critical Temperature Conditioning Station. This allows for precise thermal manipulation of the preform before blowing, ensuring uniform wall thickness even for complex geometries like oval cosmetic jars. Engineered by Ever-Power, this machine utilizes 10 sets of servo motors (102.8KW) to replace traditional hydraulics, offering top-tier performance at a significantly more accessible entry point for our partners in Korea.

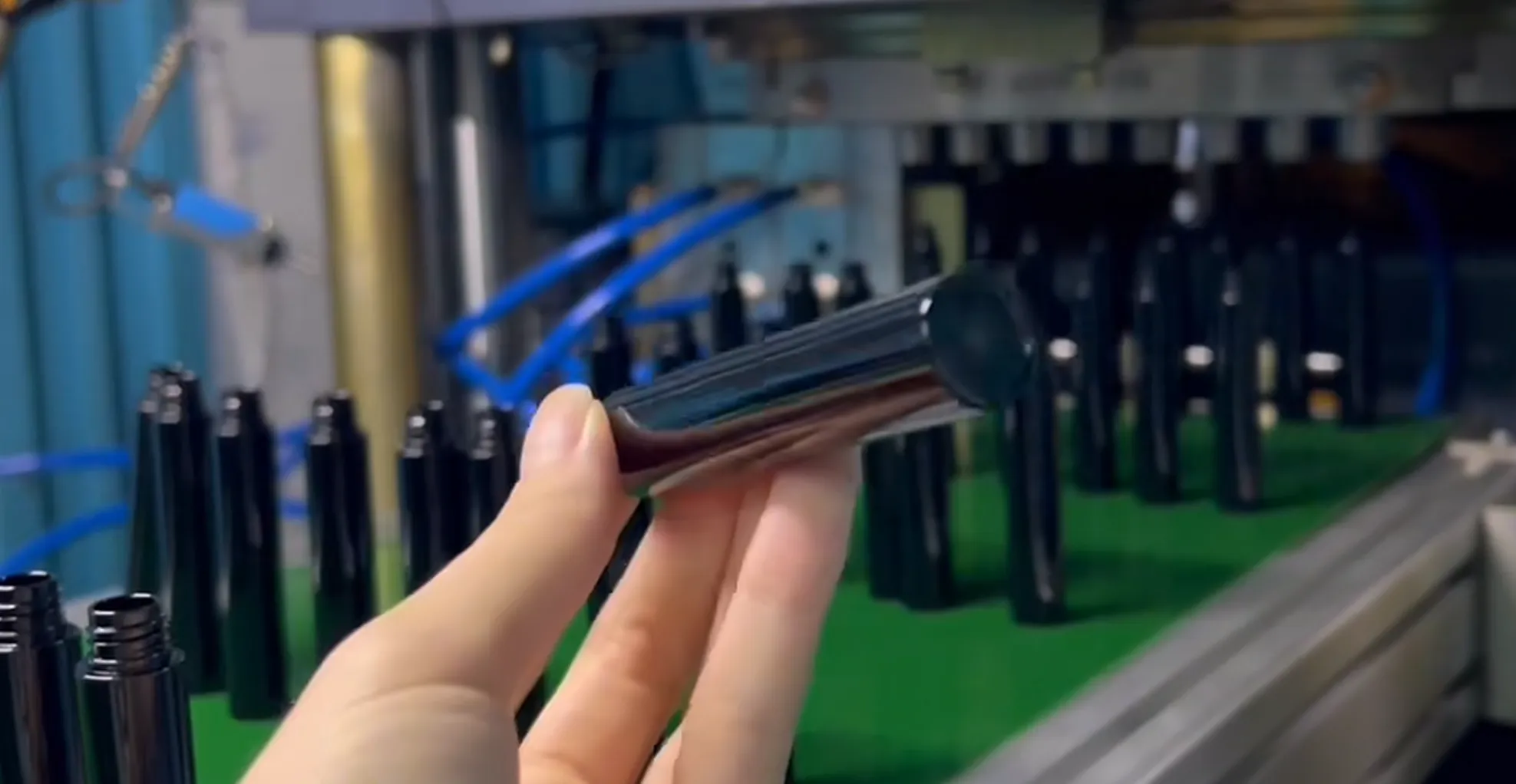

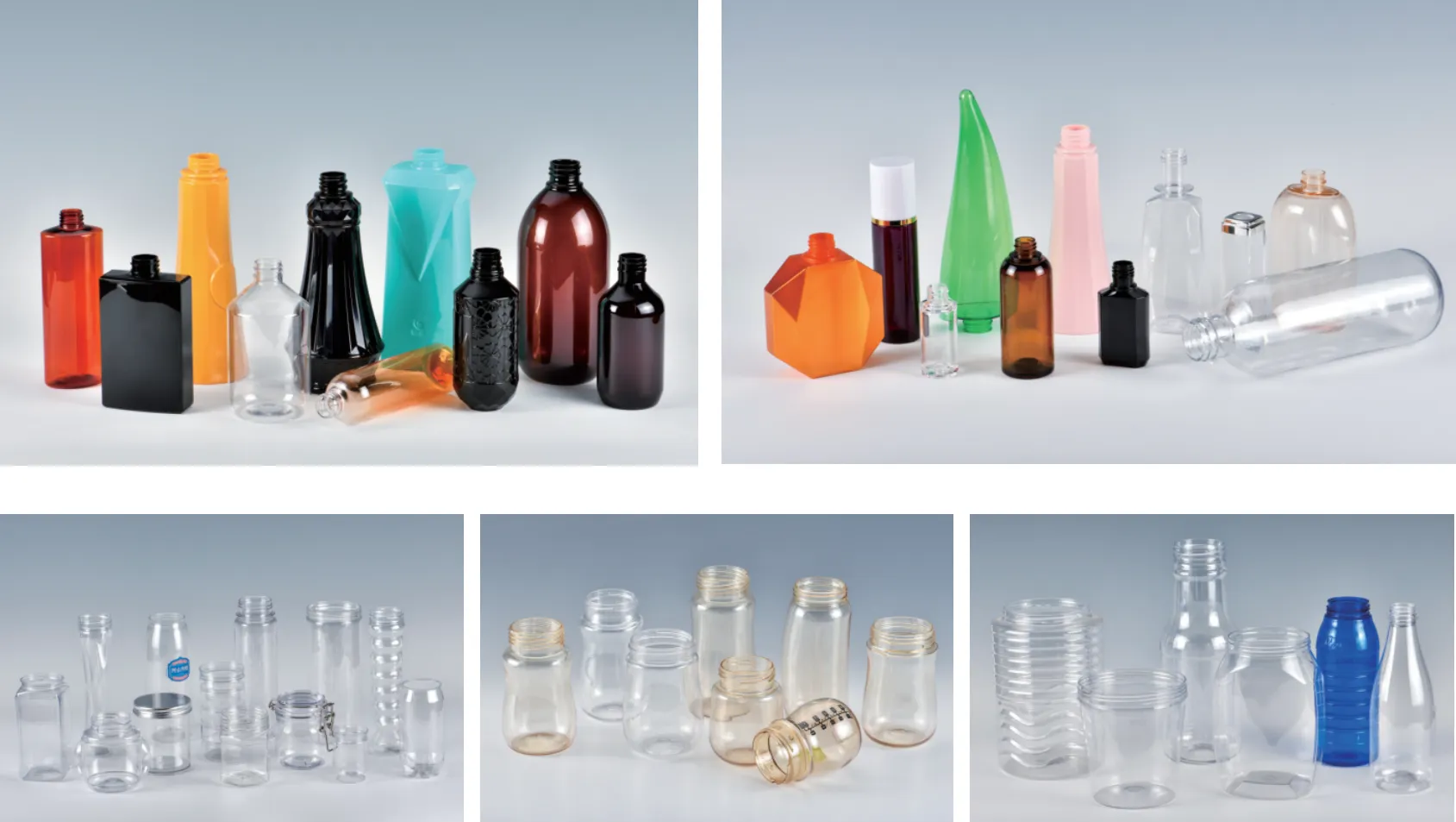

injection-stretch-blow-moulding-application-1

Technical Standard Configuration

Reliability in 24/7 manufacturing stems from component quality. The HGY150-V4-EV integrates a global supply chain to ensure stability under continuous operation.

System / Component	Brand / Specification
Servo System	Using 10 sets of servo motor control screws
Servo Motor Power	102.8KW (Inovance / WEICHI)
Control System (PLC)	Inovance / MIRLE
Turntable Rotation	Yaskawa Servo (Japan) or WEICHI Servo + TSUNTIEN Reducer (Taiwan)
Blow Molding Structure	Dual servo motor mold clamping system with high-pressure compensation
High Pressure Valve	Parker (USA)
Pneumatic Cylinder	Airtak
Temperature Control	Integrated Control Box (High accuracy, stable)
Screw Heating	Nano-far-infrared energy-saving heating ring (10KW)
Lead Screw	NSK (Japan)
Mold Compatibility	Compatible with Japanese ASB-12M mould
Total Power	112.8 KW

Machine Parameters & Capabilities

The HGY150-V4-EV is designed for heavy-duty performance with a focus on precision clamping and rapid cycle times. Note the substantial clamping force and generous stroke lengths.

Parameter	Value
Screw Diameter	50mm (Standard) / Options available
Theoretical Injection Capacity	392g
Injection Clamping Force	150 KN
Blowing Clamping Force	200 KN (Single Side)
Temp. Regulating Core Stroke	250 mm
Temp. Regulating Barrel Stroke	230 mm
Upper Mold Stroke	250 mm
Lower Mold Stroke	205 mm
Take-out Stroke	170 mm
Blow Core Stroke	250 mm
*Machine Dimensions (LWH)*	5200 x 1800 x 3300 mm
Machine Weight	7 Tons

Production Capacity Specifications

Product Quantity (Cavities)	1	2	3	4	5	6	7	8
Max Bottle Diameter (mm)	118	80	66	56	54	45	28	26
Max Bottle Height (mm)	210	210	210	150	150	150	100	100
Neck Diameter (mm)	83	62	48	38	32	25	17	15
Max Bottle Volume (ml)	2500	1500	900	400	250	100	30	20
Max Bottle Weight (g)	130	65	43	32	26	22	18	16

How Injection Stretch Blow Moulding Works

Understanding the injection stretch blow moulding machine process step by step reveals why this technology is superior for high-aesthetic applications. The HGY150-V4-EV utilizes a rotary table to move the PET through four distinct stations without releasing the preform.

1. Injection Station

Molten resin (PET/TRITAN/PC) is injected into a cavity to form the preform. The neck finish is molded to final tolerances immediately, ensuring leak-proof sealing.

2. Temperature Conditioning

The core advantage of 4-station ISBM machines. The preform is temperature-equalized. We can heat the body for stretching while cooling the neck, preventing deformation.

3. Stretch & Blow

A stretch rod extends the preform axially, and high-pressure air expands it radially. This biaxial orientation significantly increases the bottle's drop strength and barrier properties.

4. Product Ejection

The finished container is stripped from the core rod and conveyed out. The process is entirely touchless, meeting hygiene standards for pharma and baby care.

Strategic Analysis: One-Step vs. Two-Step

When selecting machinery, understanding the difference between injection stretch blow molding and injection blow molding is vital for ROI.

Comparison Dimension	Ever-Power One-Step ISBM	Traditional Two-Step
Process Flow	Resin -> Bottle (Integrated)	Resin -> Preform -> Reheat -> Bottle
Surface Quality	Flawless (No contact damage)	Risk of scratches during transport
Energy	Low (Uses latent heat)	High (Reheating required)

Essential Matching Parts for Your Line

To ensure the HGY150-V4-EV operates at peak efficiency, we supply high-quality auxiliary components integrated with our machine logic:

Air Compressor

Oil-free high-pressure air (3.5Mpa) ensures contamination-free blowing for medical grade products.

Chains & Gears

Heavy-duty precision chains ensure the rotary table indexes exactly 90 degrees every cycle without backlash.

Transmission Shaft

Reinforced main transmission shafts designed to withstand the high-torque start/stop motion of 24/7 production.

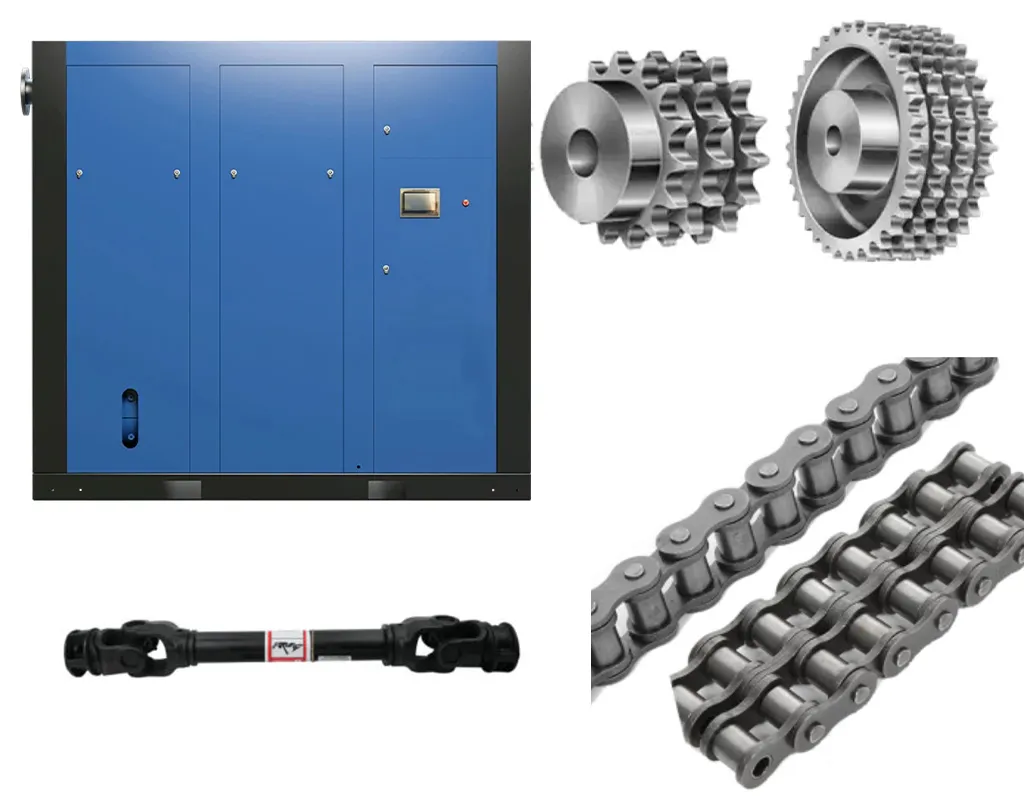

sprocket-chain-pto-shaft

Why Partner with Ever-Power?

✓ ASB Compatibility: We offer native plug-and-play compatibility with ASB-12M molds, saving you upwards of $50,000 in re-tooling costs.
✓ 40% Energy Savings: By using nano-far-infrared heating and servo hydraulics, the HGY150-V4-EV drastically cuts electricity bills.
✓ Global Components: We use Inovance servos, Parker valves (USA), and NSK screws (Japan) for easy maintenance worldwide.

certificatification-1

Frequently Asked Questions (FAQ)

1. What materials can this machine process?

The HGY150-V4-EV is versatile and can handle PET, PETG, PC (Polycarbonate), PP (Polypropylene), and Tritan. Specialized screws are available for PC to prevent yellowing.

2. How does the 4-station design improve quality?

The extra "Conditioning" station allows us to adjust the preform temperature profile. This is crucial for non-round bottles (oval, square) to ensure uniform wall thickness.

3. Can I run recycled PET (rPET)?

Yes, the machine handles rPET effectively. However, a high-quality dehumidifying dryer is required to ensure the material moisture is below 0.05%.

4. What is the maintenance for the servo system?

Servo motors are largely maintenance-free. We recommend inspecting the lead screws for lubrication every 500 hours and checking the transmission chains.

5. Do you offer installation in South Korea?

Yes, we have a field service team. We provide on-site installation, commissioning, and training to ensure your staff can operate the ISBM machine efficiently.

6. Is it compatible with my old ASB molds?

Absolutely. The platen layout is designed to accept ASB-12M molds directly, allowing for a seamless transition without new tooling investment.

7. What is the typical cycle time?

Cycle times range from 12 to 20 seconds, depending on the bottle weight and cooling time required.

8. How quickly can I get spare parts?

We use standard global components (Parker, Airtak). For custom parts, we can ship via air freight to Korea within 48 hours.

9. What is the warranty?

We provide a comprehensive 1-year warranty on the machine, with options to extend coverage for the PLC and servo systems.

10. Does it require a cleanroom?

The machine uses oil-free pneumatics in the molding zone and is fully compatible with ISO Class 8 cleanroom standards.

injection-stretch-blow-moulding-for-1
